Residential Boundaries
Fits communities, villas, and property lines with a clean appearance.
3D Fence for Residential, Factory, School, and Public Perimeter Projects
3D fence panels use V-shaped bends to increase panel rigidity while keeping a clean welded mesh appearance. The design is practical for medium-security perimeters where simple installation and neat visual effect are both needed.
It is suitable for communities, factories, schools, parks, municipal areas, and general boundary lines. Panel height, bending count, wire diameter, post type, color, and gate arrangement can be configured for each project.
Product Advantages
- V-shaped bend: Profiled bends increase panel stiffness without requiring heavier wire, supporting neat and stable perimeter runs.
- Clear perimeter: Helps define site boundaries and improve access management.
- Profiled stiffness: V-shaped bends stiffen each panel so installed runs stay flat and taut.
- Post and gate system: Combines with posts, gates, and base fittings into a complete perimeter.
Structure
3D Fence consists of welded mesh panels with V-shaped bends, posts, and connection fittings. The bends increase panel rigidity and impact resistance while keeping visibility open, making it suitable for residential, factory, school, and public perimeters.
Working Principle
3D Fence uses V-shaped bends to increase panel stiffness and resistance to lateral deformation. Posts and connectors fix the panels into a continuous perimeter, maintaining open visibility while providing general protection and separation.
Specifications
| Common mesh opening | 50×200mm, 55×200mm, etc. |
| Wire diameter | 3.5-6.0mm, customizable |
| Height | 1.0-2.4m or customized |
| Post type | Square post, round post, peach post, etc. |
| Surface treatment | Galvanized then powder coated or PVC coated |
Applications

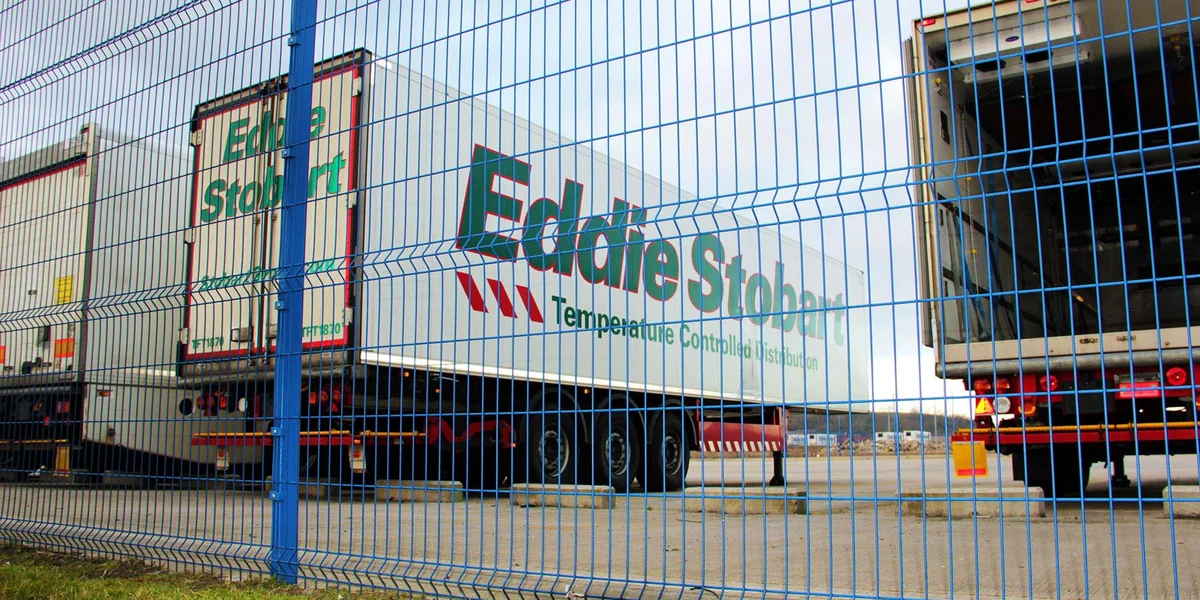

Industrial Area Protection
Separates zones and perimeters in factories, warehouses, and industrial parks.
Road Protection
Used along municipal roads, green belts, and parking lot boundaries.
Public Spaces
Protects schools, parks, and sports fields while keeping an open view.
