On-Site Cutting
Cut to project length on site for fast slope covering or wrapped components.

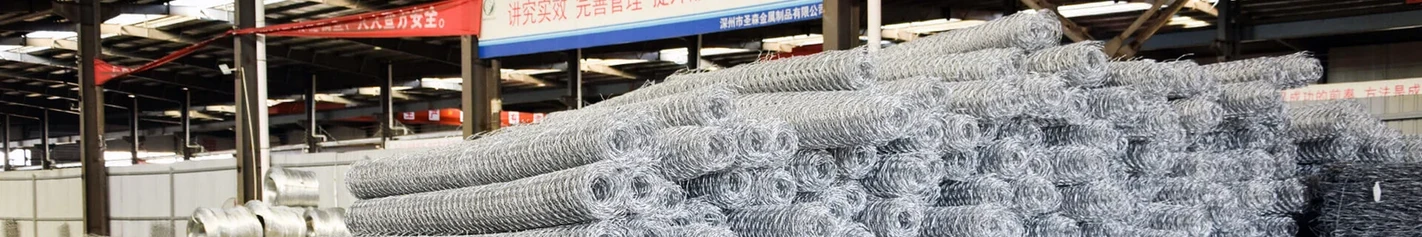

Gabion Roll for Flexible On-Site Cutting, Repair, and Custom Mesh Fabrication
Gabion roll is supplied as woven mesh in roll form for projects that need flexible cutting, wrapping, or on-site fabrication. It is useful when the final shape varies along the site or when mesh is used as repair material.
Contractors use it for slope covering, bank repair, custom gabion assembly, mattress connection, and maintenance work. Roll width, length, mesh opening, wire diameter, and coating can be selected for handling efficiency and service exposure.
Product Advantages
- Roll supply: Designed around roll supply to match key engineering needs more directly.
- Ecological permeability: Stone-filled or open mesh structure supports drainage, pressure release, and ecological recovery.
- Flexible installation: Can be assembled and connected on site according to terrain, bank line, or design requirements.
- Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
- Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure

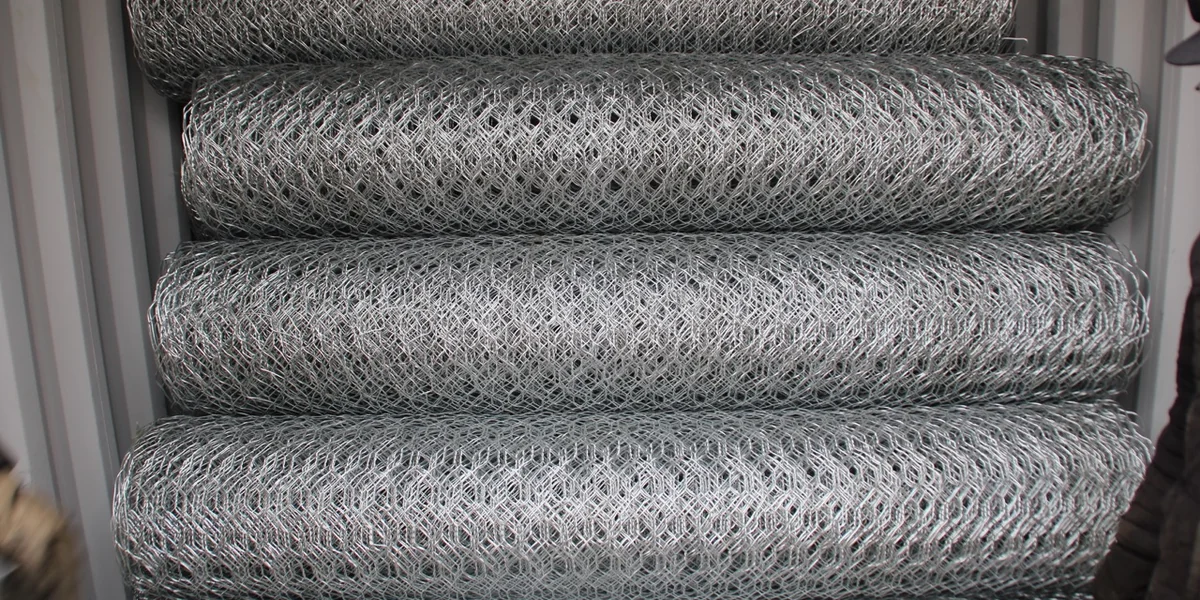

Gabion Roll is a continuous roll of double-twisted hexagonal mesh, usually supplied with reinforced selvedge wires for cutting, bending, and connection. It can be fabricated into baskets, mattresses, or covering mesh on site for flexible installation and storage.
Working Principle
Gabion Roll follows the same principle as fabricated gabions: the double-twisted mesh confines stone or covers a slope to form flexible protection. Because it is supplied in rolls, it can be cut and connected on site into baskets, mattresses, or covering mesh, giving projects more flexibility in transport and installation.
Specifications
| Roll width | 1m, 2m, 3m, customizable |
| Roll length | Standard roll length or customized |
| Mesh opening | 60×80mm, 80×100mm, 100×120mm |
| Wire diameter | 2.0-4.0mm |
| Surface treatment | Hot-dip galvanized, Galfan, PE/PVC coated |
Applications
Slope Covering
Flexible for large slopes, channels, and bank surface protection.
Temporary Protection
Used for soil conservation, exposed slopes, and temporary works during construction.
Custom Shaping
Fits irregular terrain, corners, and local reinforcement areas with easy processing.
