Wet Environments
Designed for slopes exposed to moisture, rainwater, and wet soil.
PE/PVC Coated Gabion Mesh for Wet, Coastal, and Corrosive Environments
PE/PVC coated gabion mesh adds a polymer protective layer over the metal wire to improve corrosion resistance in humid, saline, or chemically exposed areas. The coating helps protect the wire during long-term contact with water, soil, and stone fill.
It is commonly selected for coastal revetments, sewage channels, reservoirs, landscaping water features, and projects where galvanized wire alone may not provide enough durability. Coating color, thickness, mesh opening, and wire diameter can be specified.
Product Advantages
- Enhanced corrosion resistance: Designed around enhanced corrosion resistance to match key engineering needs more directly.
- Ecological permeability: Stone-filled or open mesh structure supports drainage, pressure release, and ecological recovery.
- Flexible installation: Can be assembled and connected on site according to terrain, bank line, or design requirements.
- Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
- Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure
PE/PVC Coated Gabion Mesh uses galvanized or Galfan wire as the core and adds a PE or PVC protective coating before weaving into double-twisted hexagonal mesh. The metallic layer and polymer coating work together to protect stone-filled structures in humid, saline, or exposed environments.
Working Principle
PE/PVC Coated Gabion Mesh works like standard gabion mesh by confining stone into a permeable flexible structure. The polymer coating adds a barrier against moisture, salts, and corrosive media, slowing wire corrosion and extending service life in humid, saline, or long-term exposed environments.
Specifications
| Base wire | Galvanized wire or Galfan wire |
| Coating material | PE or PVC |
| Common colors | Green, gray, black, customizable |
| Mesh opening | 60×80mm, 80×100mm, 100×120mm |
| Product form | Mesh roll, gabion basket, Reno mattress, etc. |
Applications

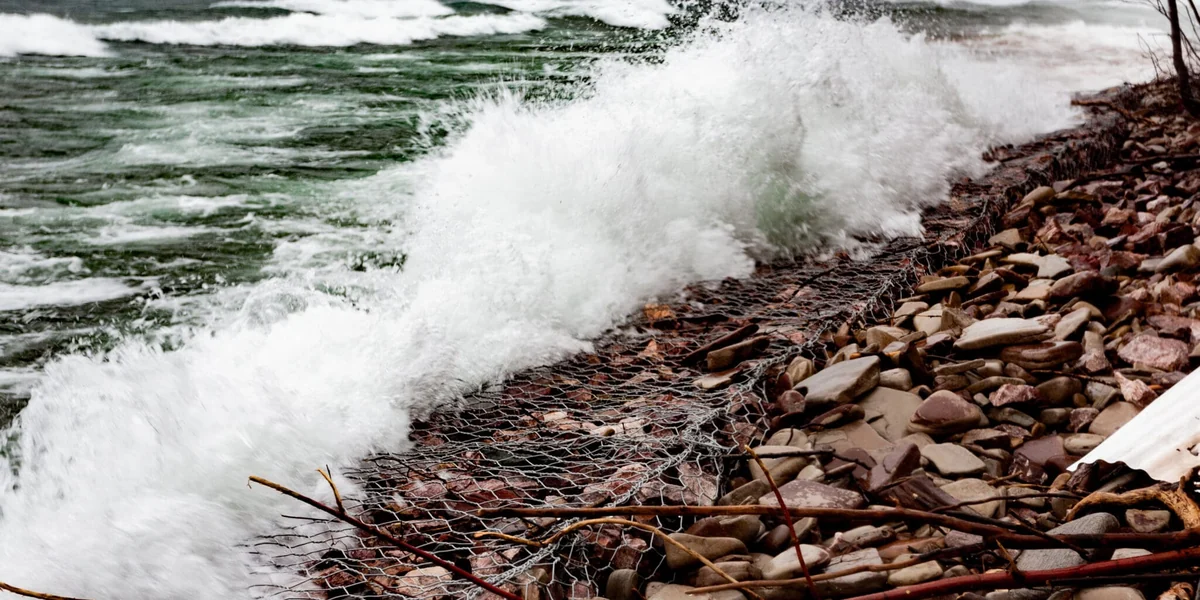

Coastal Projects
Improves durability in salt spray and other corrosive outdoor conditions.
Ecological Revetment
Protects riverbanks, lakesides, and landscape water systems with corrosion resistance.
Long-Life Works
Fits hydraulic, traffic, and municipal projects requiring longer maintenance cycles.
