Reinforced Soil Walls
Improves tensile resistance and stability for high fills and retaining structures.
Reinforced Terramesh for Green Retaining Walls and Reinforced Earth Slopes

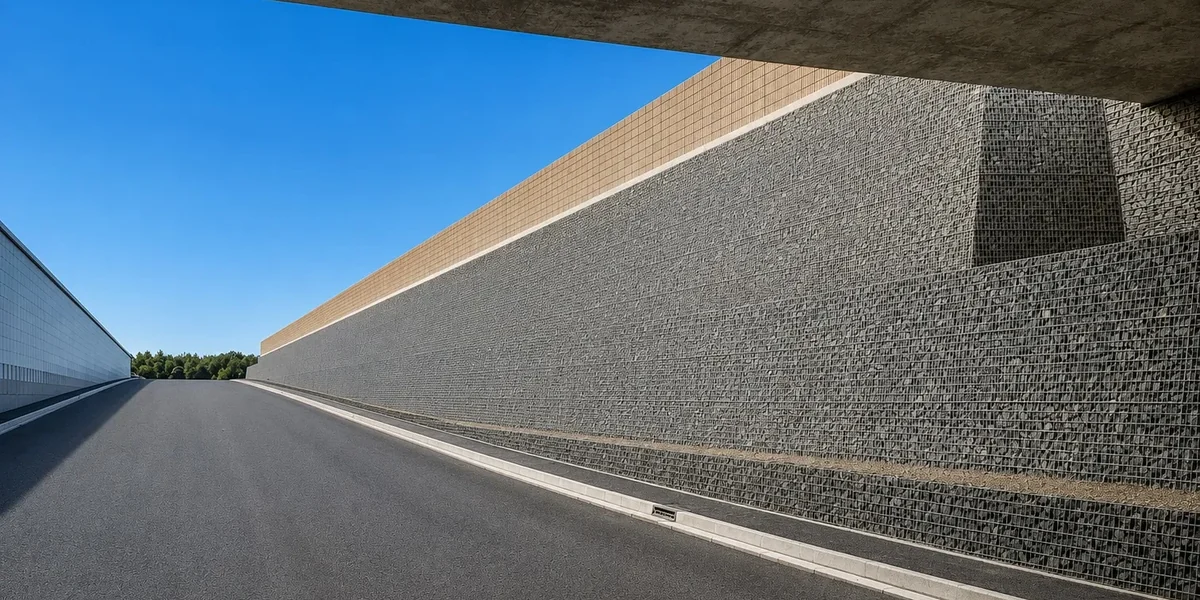

Reinforced Terramesh integrates a gabion facing, soil reinforcement mesh, and backfill into one retaining system. It creates a stable front face while extending reinforcement into the embankment or slope body.
The system is used for roads, railways, riverbanks, and land development sites where retaining height, drainage, and landscape recovery must be considered together. Facing depth, reinforcement length, mesh type, and coating are selected by design load.
Product Advantages
- Facing reinforcement: Designed around facing reinforcement to match key engineering needs more directly.
- Ecological permeability: Stone-filled or open mesh structure supports drainage, pressure release, and ecological recovery.
- Flexible installation: Can be assembled and connected on site according to terrain, bank line, or design requirements.
- Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
- Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure

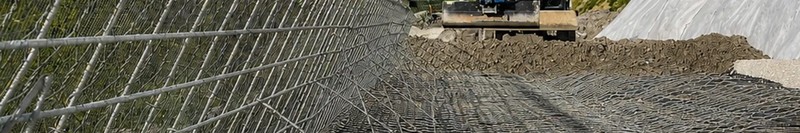

Reinforced Terramesh consists of an ecological facing unit connected to a continuous reinforcement mesh panel. The front forms a low-height stone-filled facing, while the rear mesh extends into the backfill, combining slope protection, drainage, and soil reinforcement in one system.
Working Principle
Reinforced Terramesh protects the slope face with a stone-filled front unit while the rear mesh reinforces the backfill. The facing drains and resists erosion, and friction between soil and reinforcement provides tensile stability, making it suitable for ecological retaining walls and reinforced soil slopes.
Specifications
| Polymer Properties | Polymer | Polypropylene | |
| Mass per unit area and tolerance | g/m2 | 500±50 | |
| Melting point | °C | 150 | |
| Density | kg/m3 | 900 | |
| UV resistance | Stable | ||
| Reinforcement Performance | Type | Galfan-coated hexagonal double-twisted steel wire mesh | |
| Mesh type | cm | 6×8 | |
| Wire diameter | mm | 2.2 | |
| Minimum coating mass | g/m2 | 230 | |
| Mechanical Properties | Polymer tensile strength | kN/m | 1.5 |
| Reinforcement mesh tensile strength (length direction) | kN/m | 35 | |
| Polymer peel strength | N/cm | 3 | |
| Physical Properties | Mass per unit area and tolerance | g/m2 | 1680±200 |
| Void index | % | >90 | |
| Nominal thickness (2KPa) | mm | 12 | |
| Geomat color | Black | ||
| Length/roll | m | 25 | |
| Width/roll | m | 2 | |
| Area/roll | m2 | 50 |
Applications
Road Slopes
Suitable for road widening, embankment filling, and mountain road slope treatment.
Bridge Transitions
Supports backfill zones near bridge abutments, culverts, and structures.
Ecological Slopes
Allows vegetation recovery while keeping engineering protection visually integrated.
